COD	E	S	S’	TP1	TP2	TP3	CRP	L	LE	LCE	LTP1	LTP2	LCU	VI
2041-70-0	1″-14UNS	1/2″SAE	n/p	1/4″SAE	1/4″SAE	n/p	22.22	98.7	33.0	23.1	45.0	33.0	25.8
2043-70-0	3/4″-16UNF	1/4″SAE	n/p	1/4″SAE	n/p	n/p	19.05	86.4	29.9	20.0	38.4	n/p	24.2
2024-70-0	3/4″-16 UNF	1/2″ SAE	n/p	n/p	1/4″SAE	n/p	19.05	89.2	32.7	20.0	n/p	41.2	24.2
2089-70-0	3/4″-16 UNF	1/4″ SAE	n/p	n/p	1/4″SAE	n/p	19.05	86.4	29.9	20.0	n/p	38.4	24.2
2058-70-0	1″-14 UNS	3/8″ SAE	n/p	1/4″ SAE	1/4″SAE	n/p	22.22	86.4	30.2	23.1	42.2	30.2	25.8
2051-70-0	1″-14UNS	5/8″ SAE	n/p	n/p	n/p	1/4″SAE	22.22	103.7	38.0	23.1	50.0	n/p	25.8
2086-70-0	1″-14 UNS	5/8″ SAE	n/p	n/p	n/p	1/4″SAE	22.22	103.7	38.0	23.1	50.0	n/p	27.8
2117-70-0	1″-14UNS	n/p	3/8″S	1/4″SAE	1/4″SAE	n/p	22.22	97.7	32.0	23.1	32.0	44.0	25.8	⭕
2118-70-0	1″-14UNS	n/p	1/2″S	1/4″SAE	1/4″SAE	n/p	22.22	97.7	32.0	23.1	32.0	44.0	25.8	⭕
2119-70-0	1.1/4″-12UNF	n/p	5/8″S	1/4″SAE	1/4″SAE	n/p	22.22	97.7	32.0	23.1	32.0	44.0	25.8	⭕
2120-70-0	1. 1/4″-12 UNF	n/p	1/2″ S	1/4″SAE	1/4″SAE	n/p	22.22	97.7	32.0	23.1	32.0	44.0	25.8	⭕
2032-70-0	3/4″-16 UNF	1/4″ SAE	n/p	1/4″SAE	n/p	n/p	19.05	88.4	29.9	20.0	38.4	n/p	24.2
2033-70-0	1″-14UNS	1/2″ SAE	n/p	1/4″SAE	1/4″SAE	n/p	22.22	101.5	33.0	23.1	45.0	33.0	25.8
2045-70-0	1″-14 UNS	n/p	1/2″ S	1/4″SAE	1/4″SAE	n/p	22.22	101.5	32.0	23.1	32.0	44.0	27.8
2050-70-0	1.1/4″-12UNF	n/p	5/8″ S	1/4″SAE	1/4″SAE	n/p	22.22	101.5	32.0	23.1	32.0	44.0	27.8
2060-70-0	1″-14UNS	5/8″SAE	n/p	n/p	1/4″SAE	n/p	22.22	106.5	38.0	23.1	n/p	50.0	25.8
2064-70-0	1″-14 UNS	n/p	5/8″ S	1/4″ SAE	1/4″SAE	n/p	22.22	105.5	37.0	23.1	37.0	49.0	27.8
2083-70-0	1″-14 UNS	n/p	3/8″ S	1/4″ SAE	1/4″SAE	n/p	22.22	100.5	32.0	23.1	32.0	44.0	27.8
2111-70-0	1″-14UNS	n/p	1/2″ S	1/4″SAE	1/4″SAE	n/p	22.22	100.5	32.0	23.1	44.0	32.0	25.8
2112-70-0	1.1/4″-12UNF	n/p	5/8″ S	1/4″SAE	1/4″SAE	n/p	22.22	105.5	37.0	23.1	49.0	37.0	25.8
2113-70-0	1″-14 UNS	n/p	3/8″ S	1/4″SAE	1/4″SAE	n/p	22.22	101.5	32.0	23.1	44.0	32.0	25.8
2114-70-0	1.1/4″-12UNF	n/p	1/2″S	1/4″SAE	1/4″SAE	n/p	22.22	100.5	32.0	23.1	44.0	32.0	25.8
2121-70-0	1″-14 UNS	n/p	5/8″S	1/4″SAE	n/p	n/p	22.22	100.5	32.0	23.1	44.0	n/p	25.8

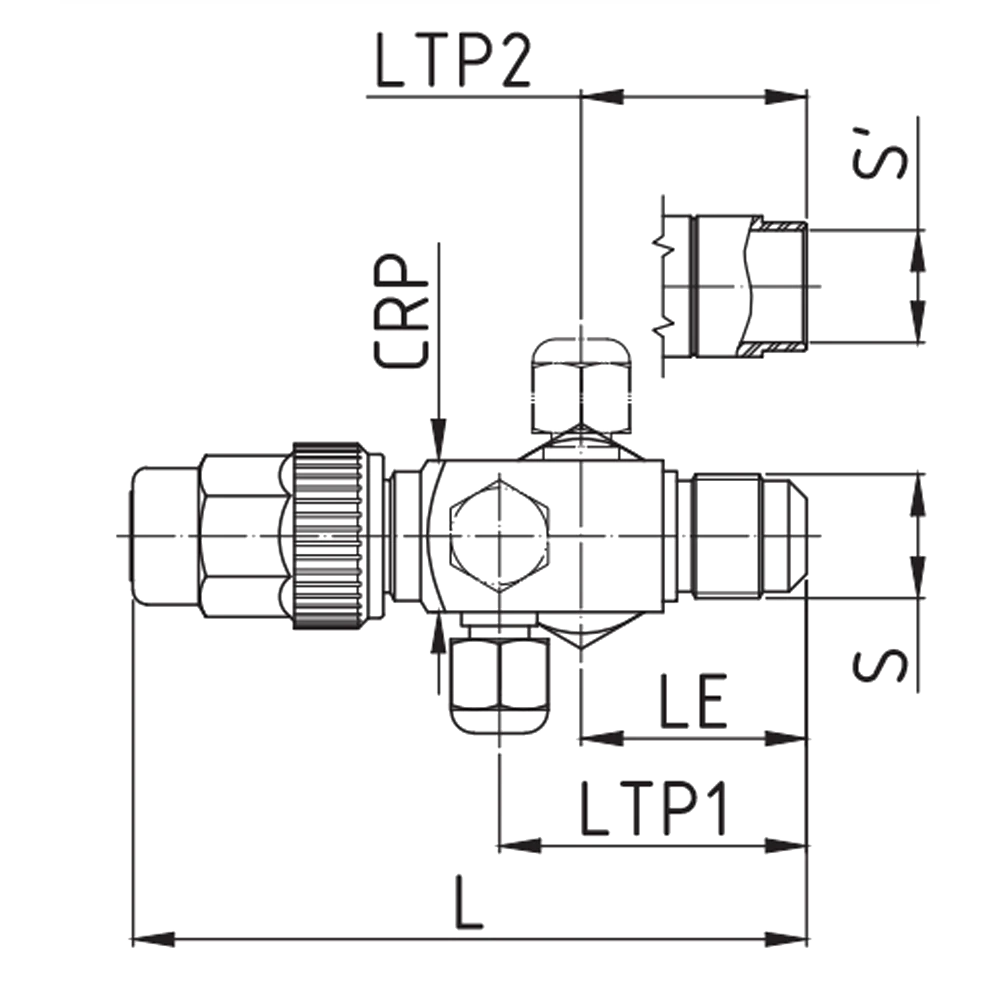

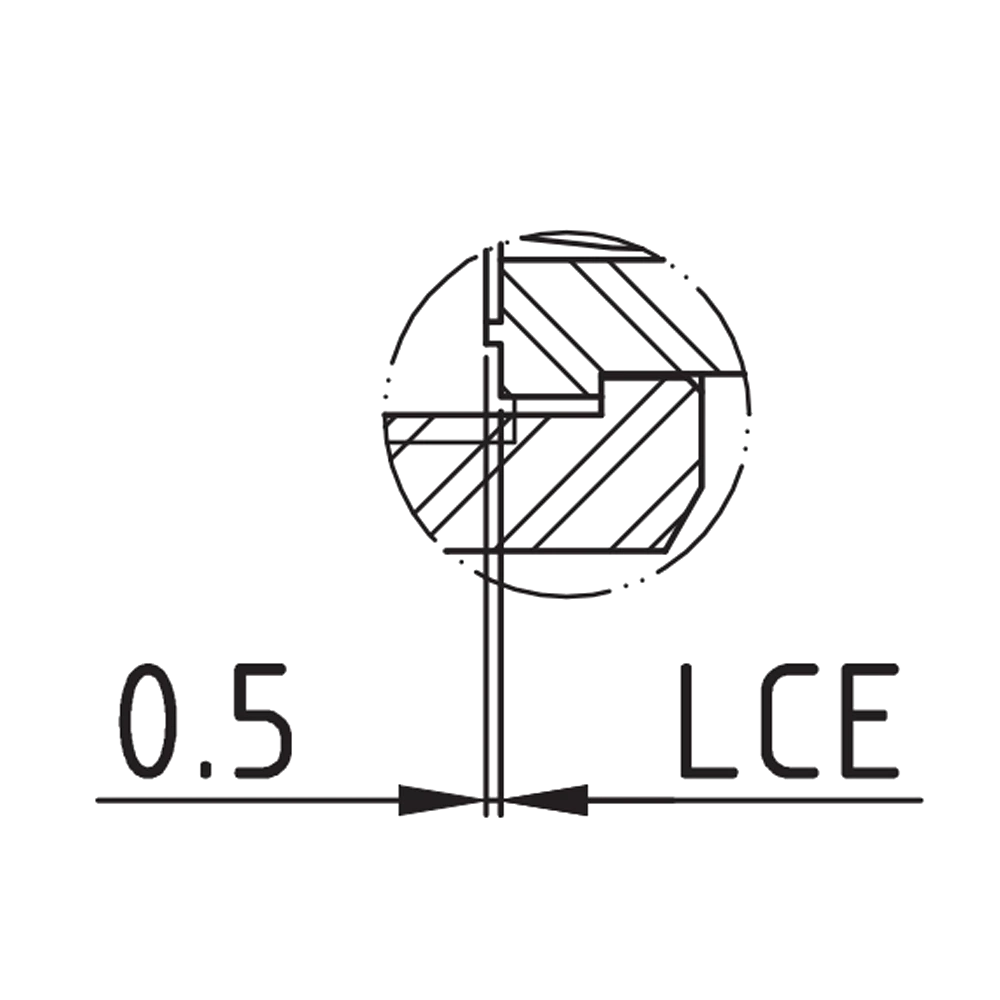

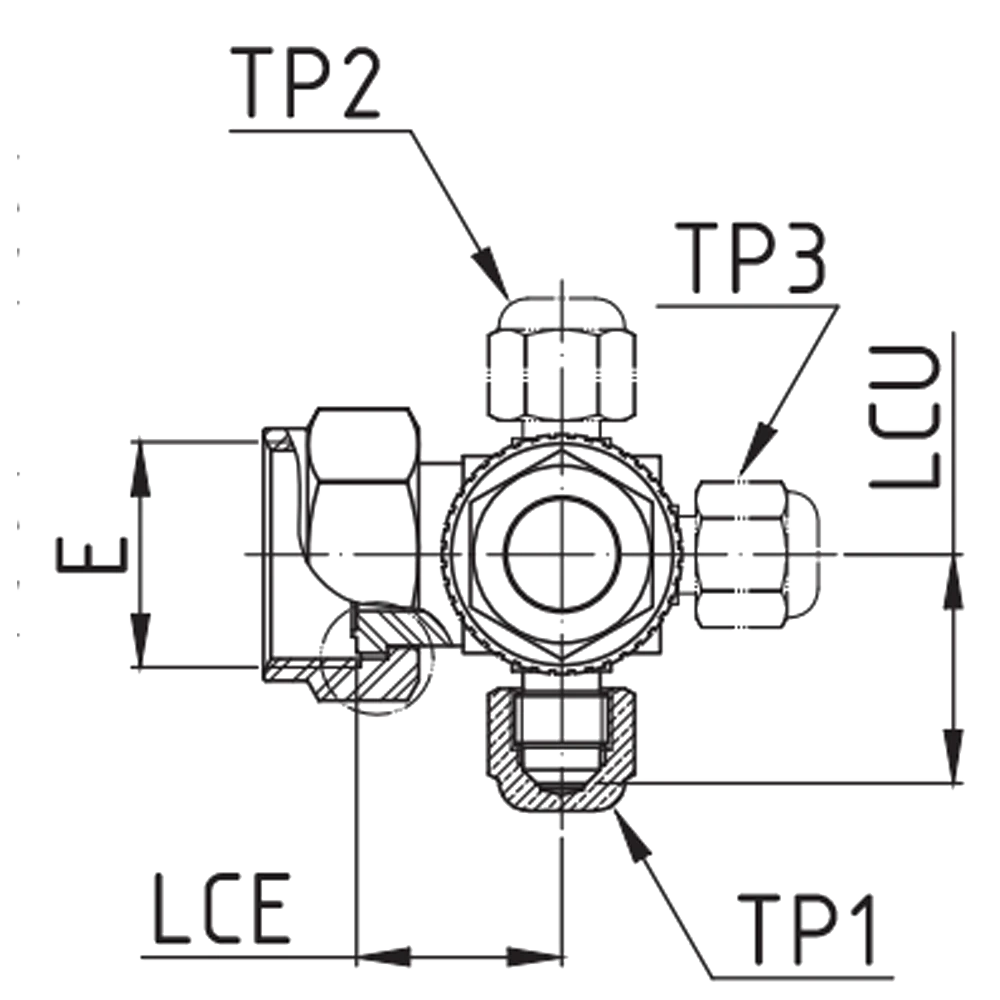

E:Cor1exão de eritrada,(tipo rosca).S:Coriexão de saída, (tipo rosca).S’:Coriexãointemade saída, (tipo solda) TP1:Tornada de pressão 1.TP2:Tornada de pressão 2.TP3:Tornada de pressão .CRP: Dimensão e pertíl do corpo da válvula. L:Comprimento.LE:Comprimentodecentro da er1tradaaté a saída.LCE:Comprimento de centro da conexão deentrada.LTP1:Comprirner1to de cer1tro “TPl “(LTPl =LTP3).LTP2:Comprimento de cer1tro “TP2”.LCU:Cornprirner1tode centro da uriião depassagem.Vl:Vedaçãoiritema.n/p:Não possui.
